รายละเอียดเพิ่มเติม
- ดิจิตอลมัลติมิเตอร์ VC 97
- DC VOLTAG : 400mV/4V/40V/400V/1000V
- AC VOLTAG : 400mV/4V/40V/400V/750V
- DC CURRENT : 400uA/4000uA/40mA/400mA/10A
- AC CURRENT : 400uA/4000uA/40mA/400mA/10A
- RESISTANCE : 400/4K/40K/400K/4M/40M
- CAPACITANCE : 4nF/40nF/400nF/4uF/40uF/200uF
- FREQUENCY : 100/1000/10K/100K/1M/30MHz
- TEMPERATURE : -20 ํC ~ 1000 ํC
- PRODUCT NET WEIGHT : 420G
- PRODUCT DIMENSION : 190X93.5X37MM

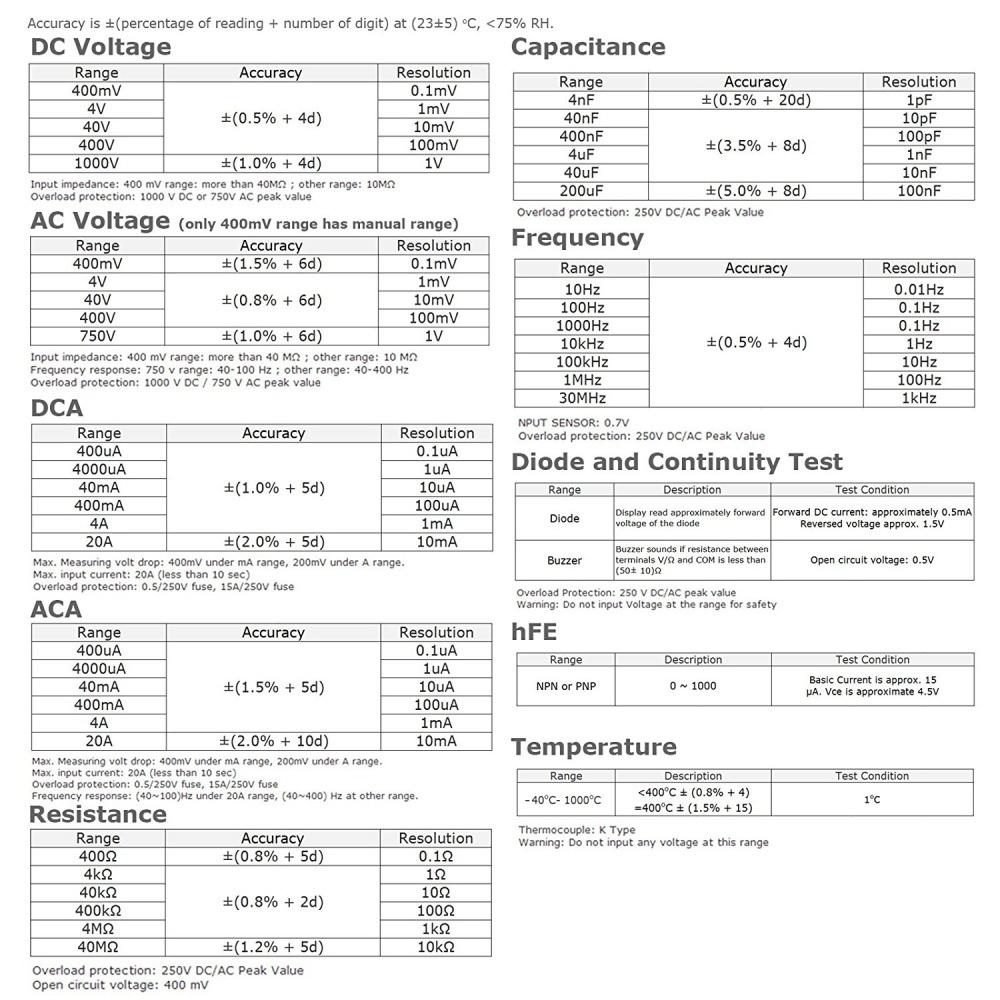

Specifications:
- Display: 3 ¾ digit Large LCD with a max readings of 3999
- Measuring method: Dual-slope integrating A/D Converter System
- Sampling Rate: approx. 3 Times / Second
- Range Selection Method: Automatic and Manual
- Polarity: Automatic Negative Polarity Indication
- Over range indication: “OL” display
- Operating Temperature: 0 ~ 40°C; Operating Humidity: <80% RH
- Storage Temperature: -10 ~ 50°C; Storage Humidity: <80% RH
- Low battery indicator
- Power: 2 x 1.5V AAA batteries (included)
- Dimensions: 185(L) x 93(W) x 35(H) mm
- Weight: approx. 290g (including battery)
Technical Specification:
The Professional Auto-range Digital Multimeter is a powerful tool for debugging circuits with high performance, high accuracy with large LCD display measuring DCV, ACV,DCA, ACA, Resistance, Capacitance, Frequency, Temperature, Duty Cycle Measurement, Triode, Diode and Continuity Test.
Designed function includes: unit signal displaying, relative value measuring, AUTO/MANUAL range switch, auto power off and warning function, auto negative polarity indication, overload protection, etc. with stand, auto-off and buzzer.
Perform test like DCV, ACV, DCA, ACA, Resistance, Capacitance, Frequency, Temperature, hFE, Duty Cycle, Triode, Diode and Continuity Test. This multimeter is most suitable for use on production lines or lab, R & D, maintenance and repairing work and Ergonomic case with protective rubber holster.
